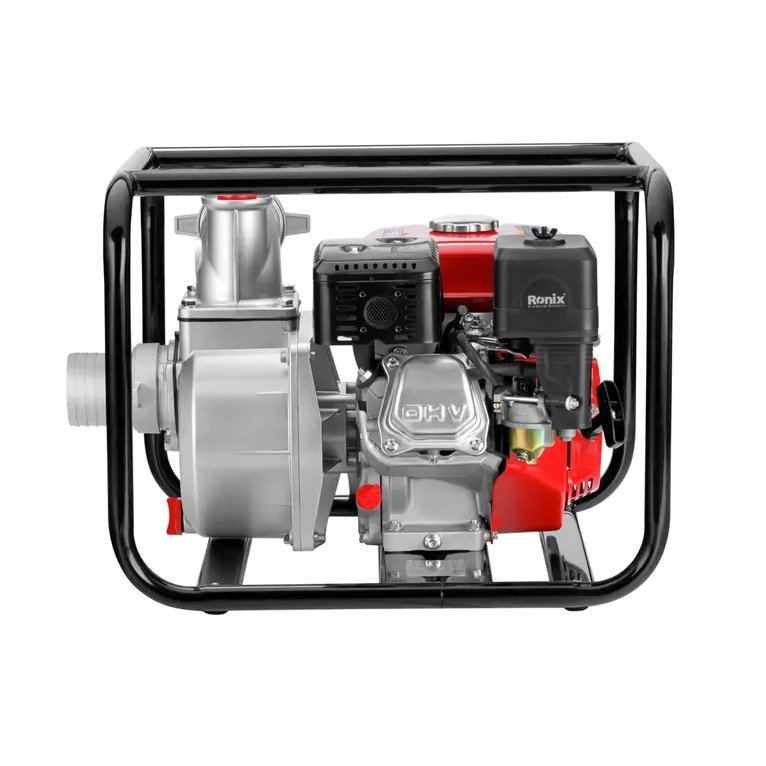

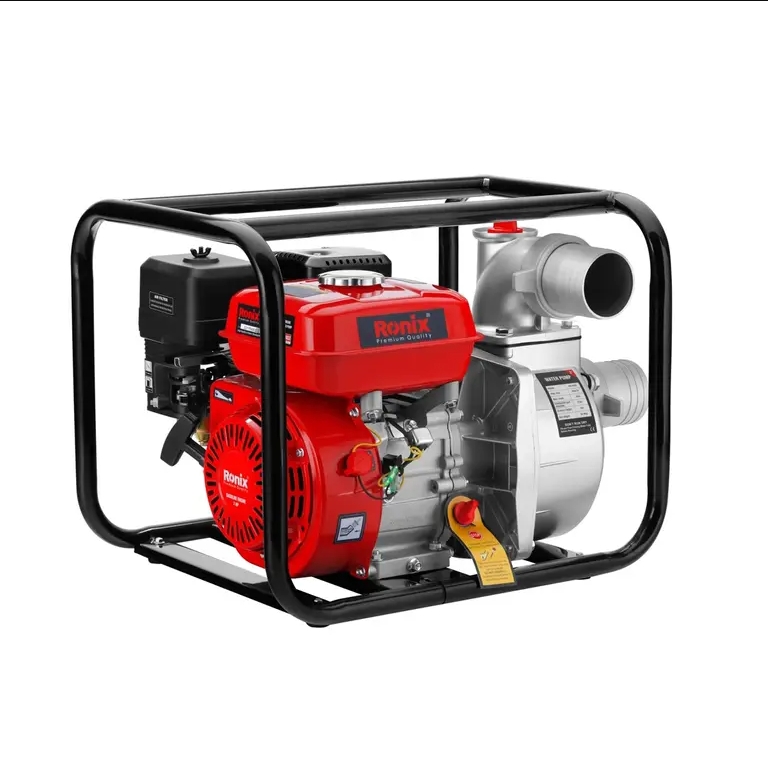

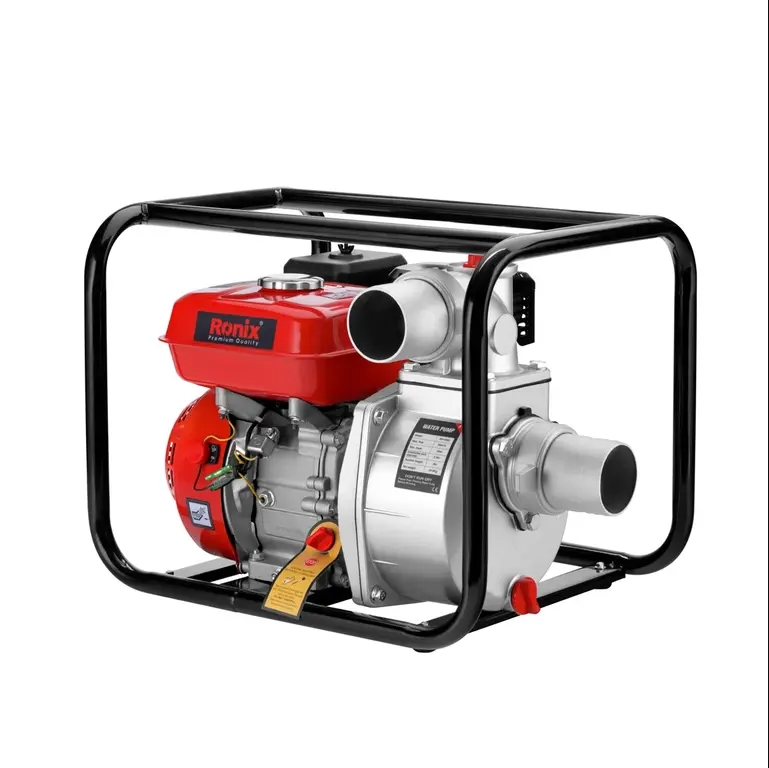

Gasoline Water Pump 3inch-7HP - Model : RH-4052 (NA)
-

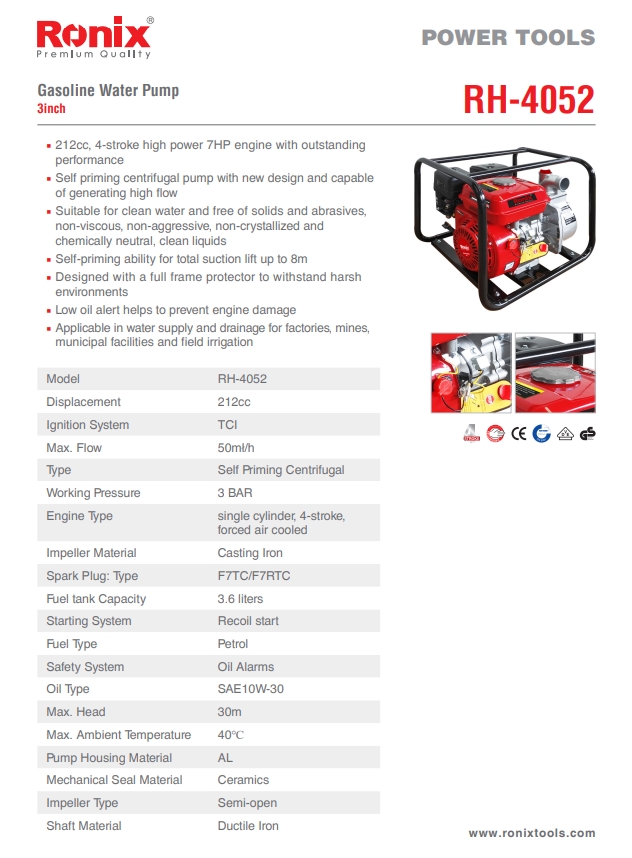

Specification
-212cc, 4-stroke high power 7HP engine with outstanding performance
-Self Priming Centrifugal Pump with new design and capable of generating high flow
Suitable for clean water and free of solids and abrasives, non-viscous, non-aggressive, non-crystallized and chemically neutral, clean liquids
-Self-priming ability for Total suction lift up to 8m
-Designed with a Full Frame Protector to withstand harsh environments

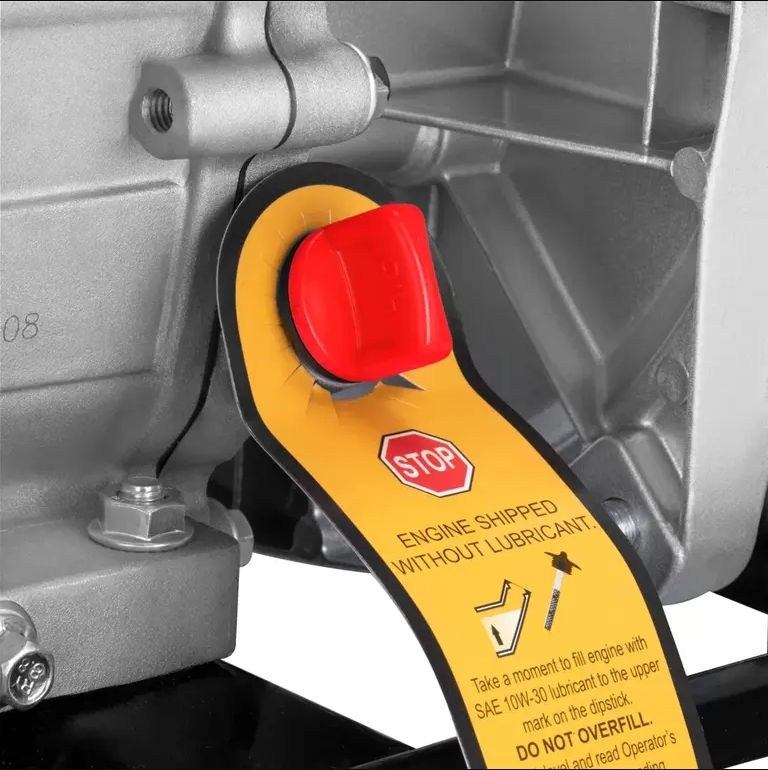

-Low Oil Alert Helps to prevent engine damage

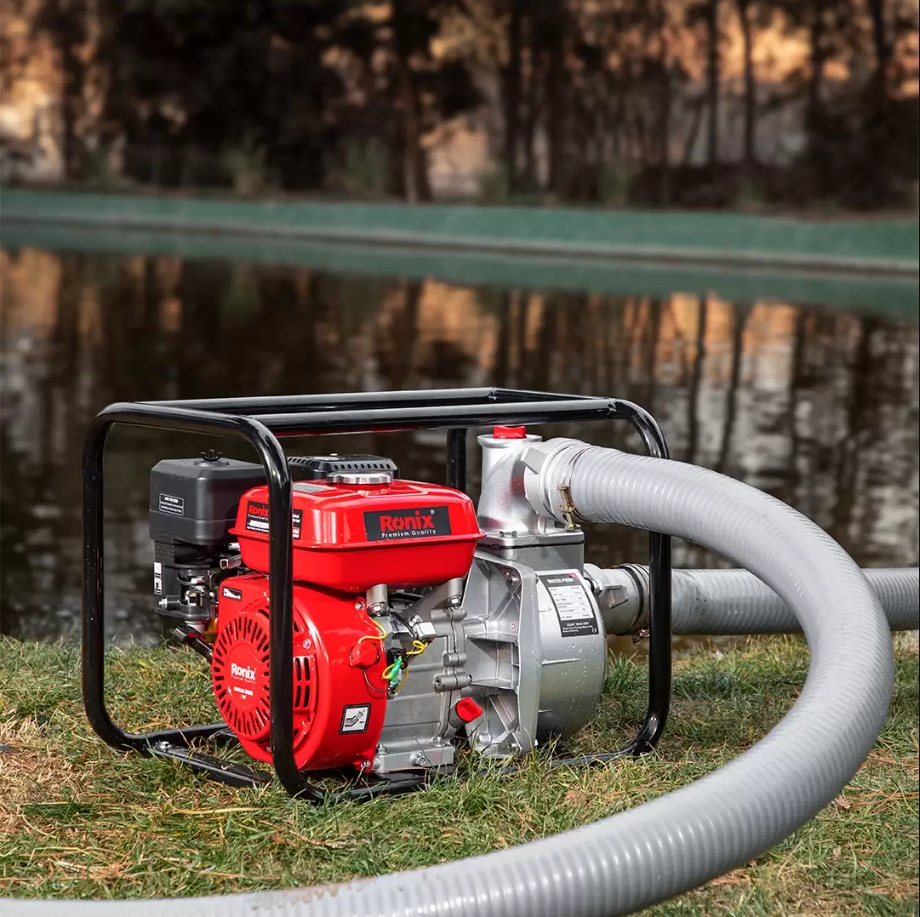

-applicable in water supply and drainage for factories, mines, municipal facilities and field irrigation.
Who can deny the importance of water supply in fields such as mining, manufacturing, and agriculture? Fortunately, water pumps are there to boost the speed and quality of it. Ronix produces many of them, and the RH-4052 gasoline water pump is one of the practical items in the collection that can help you supply water smoothly or drain water for factories, municipal facilities, and field irrigation.

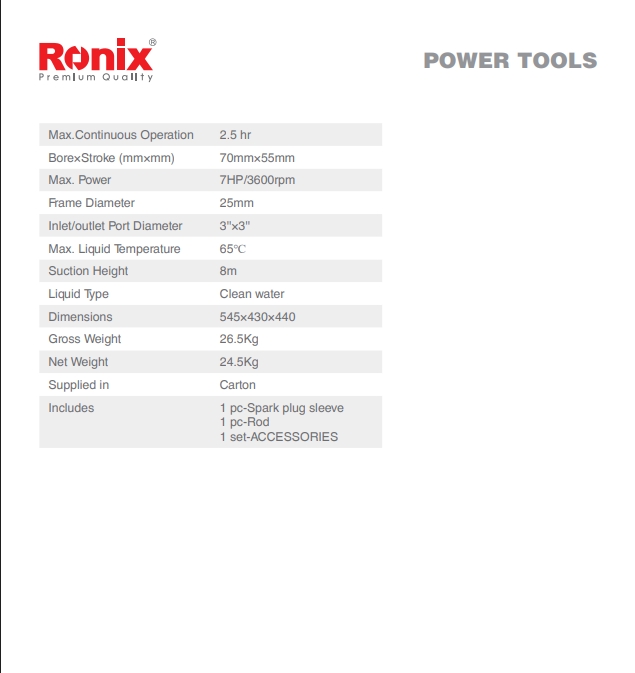

| Model | RH-4052 |
| Max. Flow | 50m³/h |
| Max. head | 30m |
| Inlet/outlet port diameter | 3''X3'' |
| Suction height | 8m |
| liquid type | Clean water |
| Max. liquid temperature | 65℃ |
| Max. Ambient temperature | 40℃ |
| Working Pressure | 3 BAR |
| Pump housing material | AL |
| Mechanical seal material | Ceramics |
| Safety system | Oil Alarms |
| Impeller type | Semi-open |
| Impeller material | Casting Iron |
| shaft material | Ductile Iron |
| Engine Type | "single cylinder , 4-stroke,forced air cooled" |
| Bore×Stroke mm×mm | 70mm*55mm |
| Displacement | 212 cc |
| Max. Power | 7HP /3600rpm |
| Type | Self Priming Centrifugal |
| Fuel Type | Petrol |
| Fuel tank Capacity | 3.6 liters |
| Max.Continuous Operation | 2.5 hr |
| oil type | SAE10W-30 |
| Starting System | Recoil start |
| Ignition System | TCI |
| Spark Plug: Type | F7TC/F7RTC |
| Frame Diameter | 25mm |
| Dimensions | 545*430*440 |
| Net Weight | 24.5Kg |
| Gross weight | 26.5Kg |
| Supplied in | Carton |
| Includes | ",1 pc-Spark plug sleeve 1 pc-Rod 1 set-ACCESSORIES" |
Detailed Description
The RH-4052 Gasoline Water Pump has many features to explore. Check out the detailed features below for a clear understanding of each one.

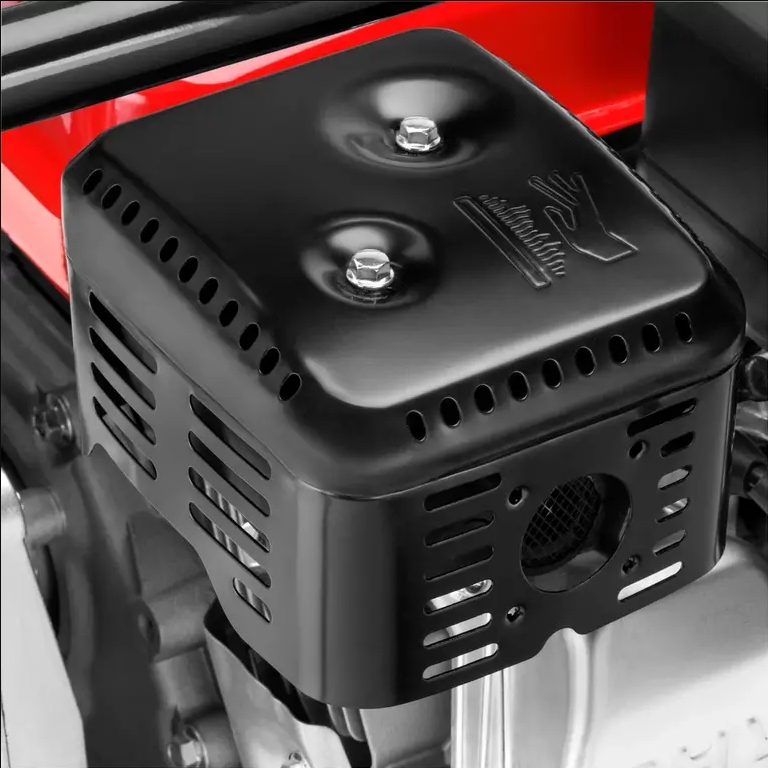

Engine
It is equipped with a single-cylinder, 4-stroke high power 7HP engine which is forced air cooled. The maximum power it delivers is 7HP with a 3600RPM motor speed.
Mechanism

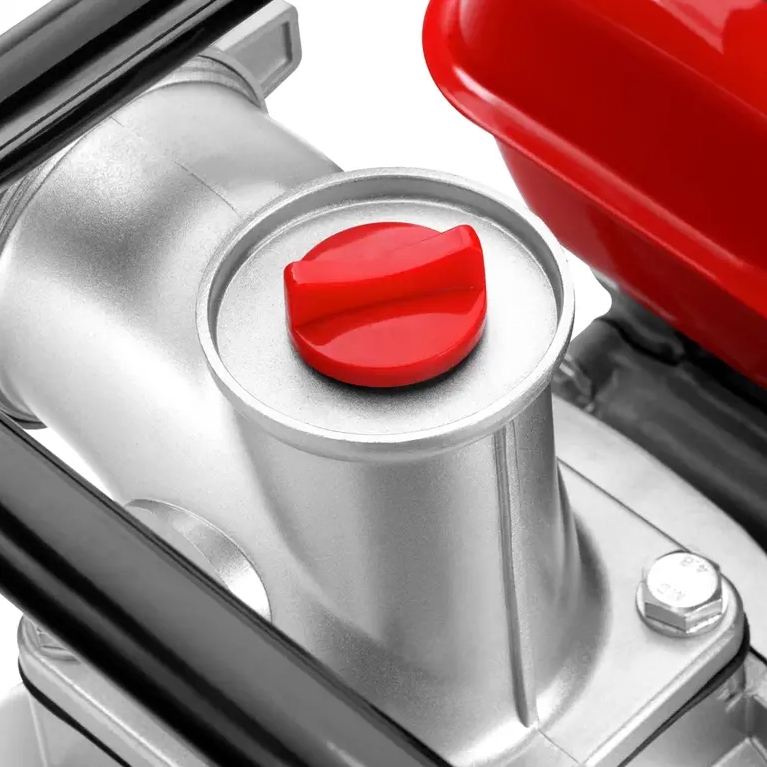

The gasoline water pump operates on a self-priming centrifugal mechanism with a newly designed system that generates high flow rates. It features a self-priming ability with a total suction lift of up to 8 meters, ensuring efficient water intake. The pump is specifically designed to handle clean water free of solids, abrasives, and non-viscous, non-aggressive, non-crystallized, and chemically neutral liquids.
With a maximum flow capacity of 50 m³/h and a maximum head of 30 meters, it delivers optimal performance under a working pressure of 3 BAR. Equipped with a safety system that includes oil alarms and a low oil alert, the pump helps prevent engine damage by shutting off when oil levels are low. Additionally, it is capable of continuous operation for up to 2.5 hours, making it suitable for various water transfer applications.
Body
The water pump is designed with a robust full-frame protector featuring a 25mm frame diameter, making it suitable for harsh environments. It is equipped with a low oil alert to help prevent engine damage, ensuring reliable performance.

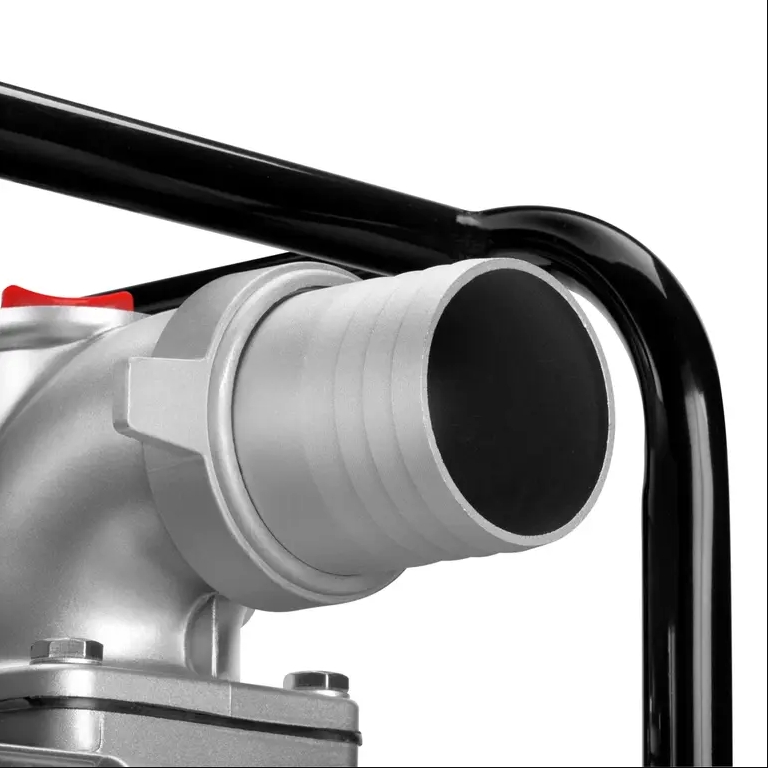

The pump has a 3''x3'' inlet/outlet port diameter, and its housing is made of aluminum (AL) which is corrosion-resistant.
The mechanical seal is crafted from ceramics, while the shaft is made of ductile iron for added strength. With dimensions of 545*430*440 mm, the pump has a net weight of 24.5kg and a gross weight of 26.5 kg, with a bore and stroke of 70mm x 55mm.
Temperature
The pump is designed to handle a maximum liquid temperature of up to 65°C. Additionally, it can operate efficiently in ambient temperatures up to 40°C.
Impeller
The water pump features a semi-open impeller which is made of cast iron, a material known for its strength and durability.
Fuel

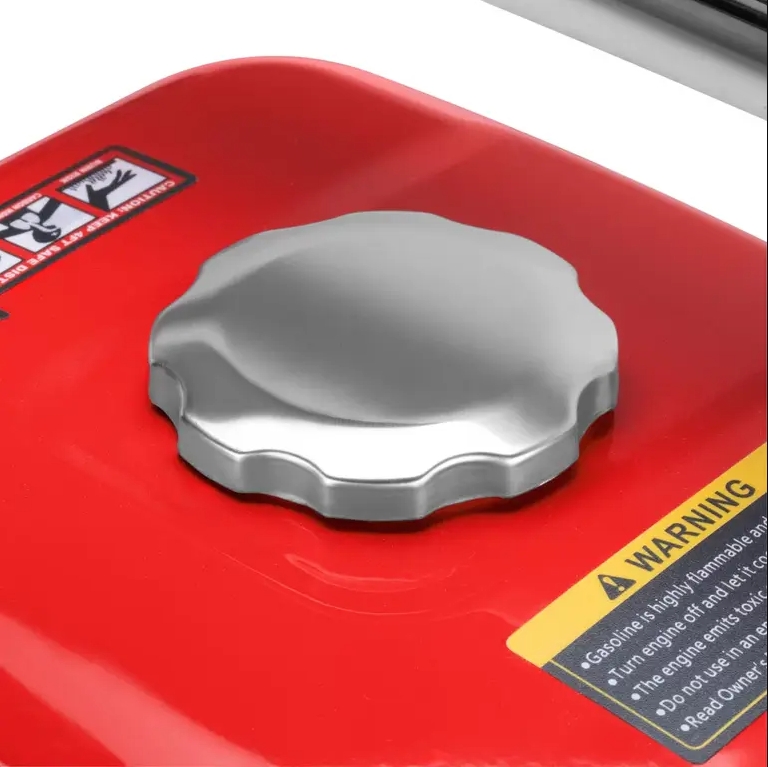

It features a fuel tank with a capacity of 3.6 liters, using petrol and SAE10W-30 oil, which is recommended for its optimal performance in a range of temperatures and conditions.

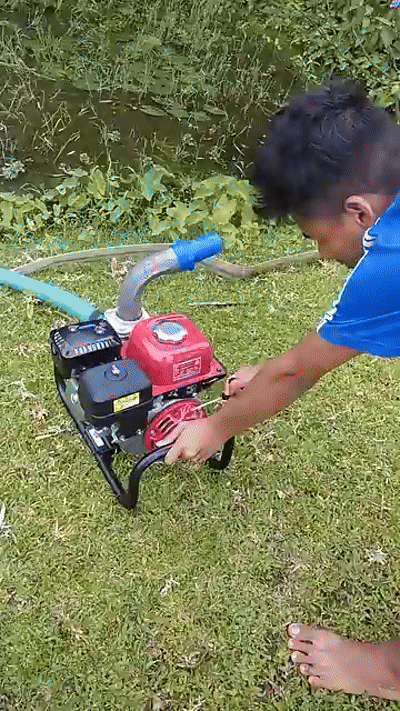

Starting System

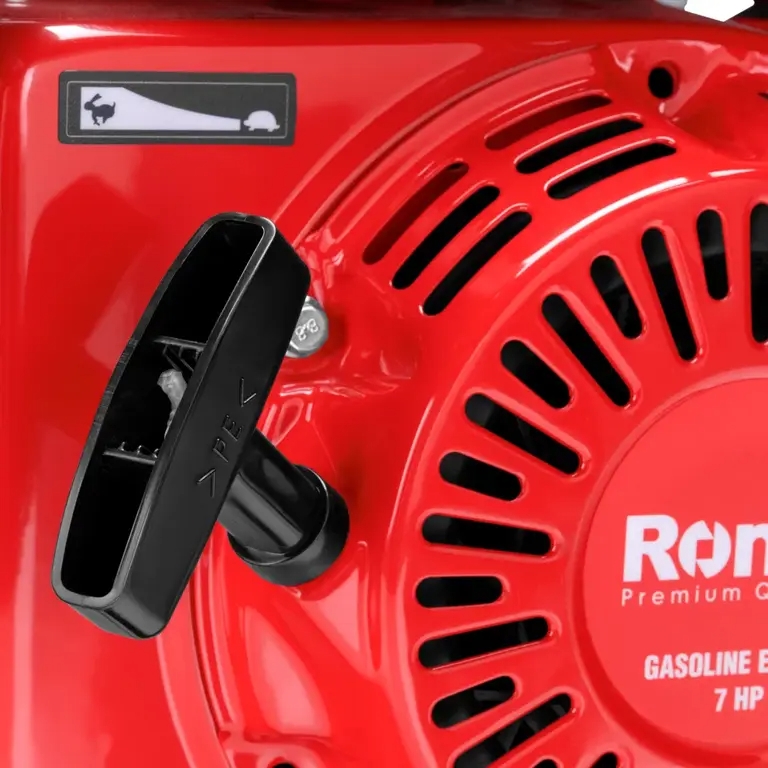

The water pump is equipped with a reliable starting system that features a recoil start mechanism. This system ensures that the pump can be efficiently powered up even in challenging conditions, providing consistent performance with minimal effort required from the operator.
Packaging

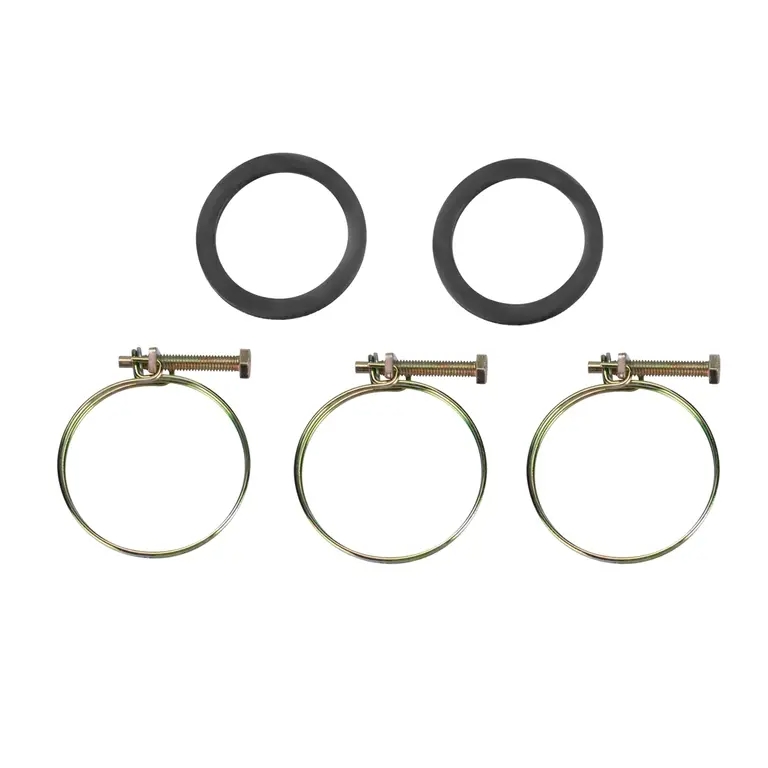

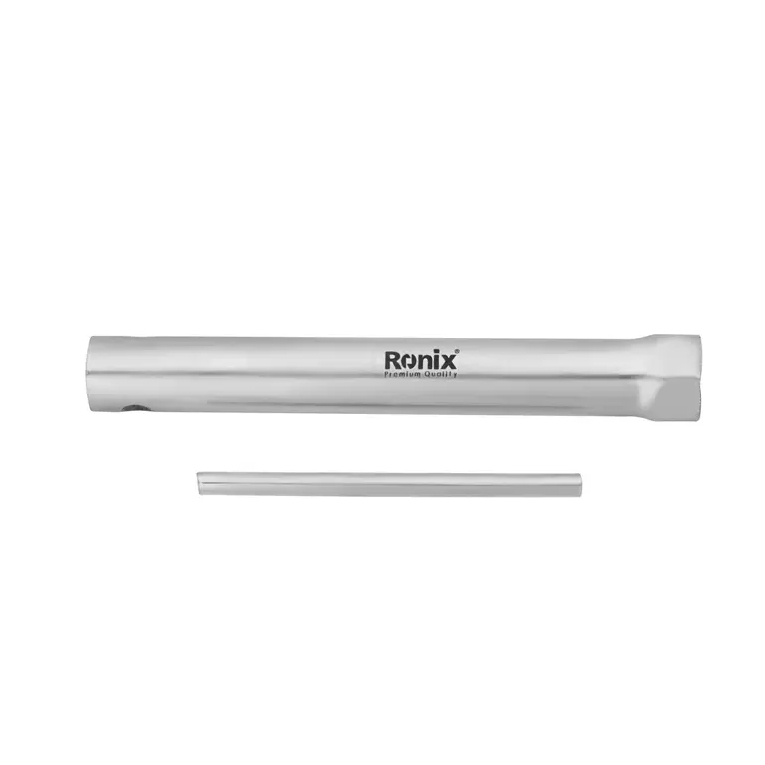

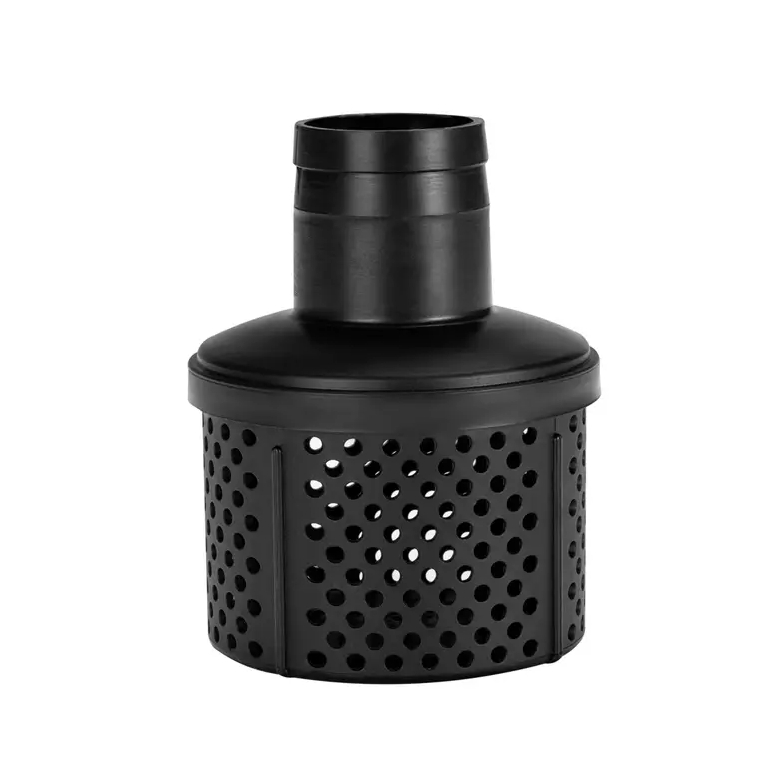

The water pump is supplied in a carton, including a piece of spark plug sleeve, a piece of Rod, and a set of accessories.
